Phenolic moulding compounds

Phenolic molding compounds are thermosetting plastics. Thermosets offer many advantages over basic thermoplastics and are suitable for compression, transfer, or injection molding...They are produced in a precise and vibrant range of colors. This material has superior high voltage resistance, high mechanical strength, good heat resistance, good dimension stability, and superior chemical resistance.

Parameter

Parameter

Value

Unit

standard

Appearance

Solid – granular form





Colour

Different according to                customer requirements





Flow

(150 – 180)*

           ( 45 – 60 )**

mm x 10-2



CT

( 50 – 60 ) *

            ( 65 – 80 ) **

sec



Press Time

1 – 6

sec



Bulk density

0.56 – 0.70

gm/cm3

ISO 60

Specific weight

1.3 - 1.4

gm/cm3

Din 7708

Humidity (60 0C)

1 max

%



Volatile matter (105 0C)

4 max

%



Grain size

According to customer requirements

mm



Shrinkage

0.9 max

%

Din 7708

Water absorption

≤ 100

mg

ISO 14526

Mechanical Properties

1- stress at break

 (≥ 40)*

  ( ≥ 50)**

Mpa

    ISO 14526

2- Flexural strength

 ( ≥ 70)*

 (≥ 80)**

Mpa

ISO 14526

3-Charpy Impact strength

                ( ≥ 4.5)*

   (≥ 5.0)**

KJ/m2

ISO 14526

4- Charpy Notched Impact strength

  (≥ 1.3)*

  (≥ 1.3)**

KJ/m2

    ISO 14526

Thermal  Properties

1-Temperature of deflection under load Tf (1.8)

≥ 160

0C

ISO 14526

2- Temperature of deflection under load Tf (8.0)

≥ 115

0C

ISO 14526

3- Flammability (glow bar) , BH

≤ BH2-10

-

ISO 14526

Electrical Properties

1-Surface Resistivity

≥ 109

Ω

ISO 14526

2- Proof Tracking Index

≥ 125

-

ISO 14526

Brabender  Plastograph

Plastogram

-

Din 53764

Colour testing

Colourimeter (x rite 8400)

-





  • Compression moulding
  • Injection moulding

Preheating *   condition

Moulding condition *

Temperature,0C

Time, sec

Temperature,0C

Pressure Kg/cm2

Curing time sec/mm

Time of production

70 – 80

30 – 60

160 – 165

400 min

   11 - 12

According to shape, thickness , ……. of the product























All of these items may be variable according to customer pressing conditions.

Packing:   • 25Kgs. net laminated polyethylene bags.

Handling:   It is advisable to wear a dust mask while emptying the bags. Hands should be thoroughly washed at the end of the working day and before meals.

Storage:   • Storage at 250c gives stability for several years.

                 • A higher temperature affects the materials flow and its mouldability



Major application areas

  • Many applications in electrical and electronic markets: insulation boards, switching parts, electrical devices, parts for telecommunication use, commutators, and wiring devices
  • Automotive parts .

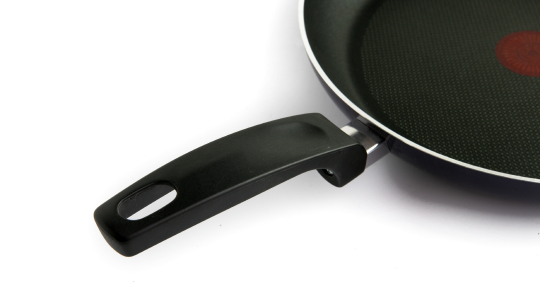

  • Household appliances.
